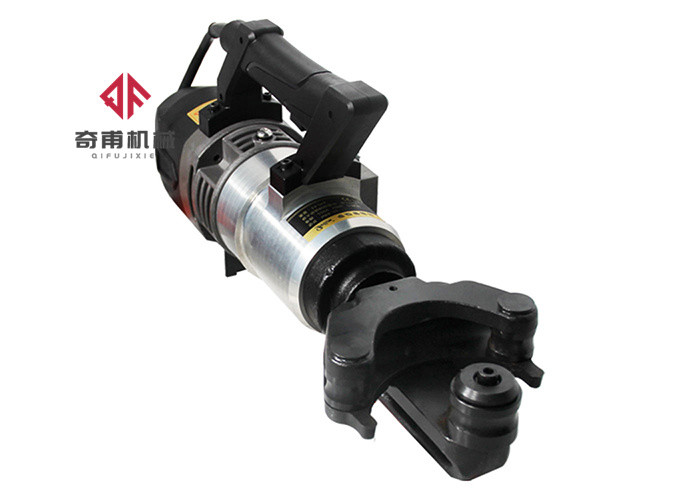

    Rebar Bending Shape Machine Automatic Steel Bar Bending Tool

    Ask Lasest Price
    Brand Name : Qifu
    Model Number : GW40 GW45 GW50
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 10,000 units per month
    Delivery Time : 7-30 days
    Certification : CE
    • Product Details
    • Company Profile

    Rebar Bending Shape Machine Automatic Steel Bar Bending Tool

    Rebar Bending Shape Machine Automatic Steel Bar Bending Tool

    What can we do for you?

    1. We can change the color according to your actual requirements.
    2. Customize the voltage motor based on your country standard.


    Description:
    A new type of gear reducer, big gear, pinion and curved disk is used. The two-stage brake motor is directly connected with the reducer to reduce the speed. The pinion meshes with the big gear to reduce the speed.
    The big gear always drives the curved disk to rotate. The curved disk is equipped with a central shaft hole and several curved shaft holes; and the positioning bar on the working table is equipped with a central shaft hole and a number of curved shaft holes.
    Several positioning axle holes are respectively arranged. The ratio of input and output rotations is accurate, the bending speed is stable and accurate, and the speed can be changed automatically by electric control. The brake can ensure the bending angle.
    Two-way bending of reinforcing bars is carried out by using the positive and negative rotation of the motor. The center axle can be replaced and repaired easily. Intelligent control can be adopted.

    Advantage:
    1. The numerical control controller can bend any angle conveniently and accurately.
    2. The six-time quenching and forging process of the integral gear has greater power and longer service life.
    3. The electric box is installed in a closed box, which is waterproof and dustproof;
    4. All bending tools can be free with the bending machine;
    5. There is a tool box welded inside the pipe bender, which not only reduces the transportation cost, but also is convenient to use.


    product nameSteel bending machine
    OriginChongqing, China
    Motor power (kW)3KW/4KW
    Voltage380V, customized
    Material / Metal Processed:
    Carbon steel
    Bending range6-50mm
    Applicable Industries:Energy & Mining, Manufacturing Plant
    Bending materialsround steel, steel bars



    ModelMotor powerMotor speedBending diameterVoltageBending speedBending angleWeightDimension
    (mm)
    round barrebar
    GW403KW1440r/min6-32mm6-28mm110V/
    220V/
    380V/
    415V/
    customized
    18-20r/min
    adjustable
    0-180°240kgs820x760x720
    GW40A
    (auto/CNC)
    3KW6-32mm6-28mm240kgs820x760x720
    GW45
    (auto/CNC)
    3KW6-36mm6-32mm320kgs870x760x720
    GW50
    (auto/CNC)
    4KW6-50mm6-40mm360kgs980x760x740

    Rebar Bending Shape Machine Automatic Steel Bar Bending Tool
